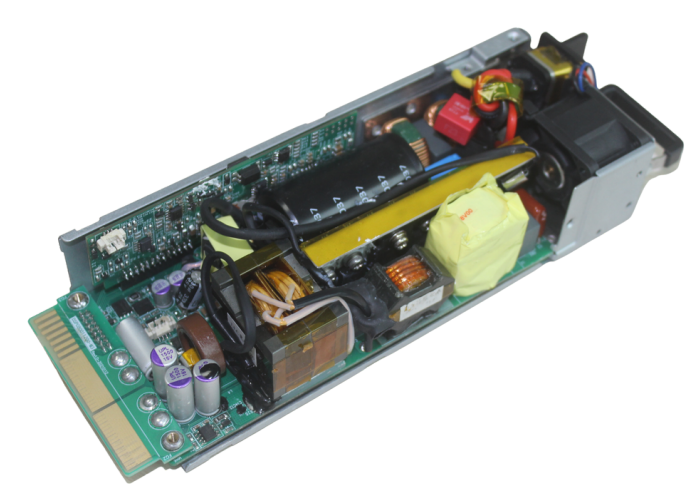

800W Platinum Efficiency Server Power
Release time:
2023-05-24 15:48
| Input Voltage | 90Vac~264Vac |
| Output Voltage | 12Vdc |
| Rated Power | 800W |
| System Efficiency | 94%ahalf load,92%afull load |
| PF | >0.99 |
| Switching Frequency | PFC:65KHz LLC:80-350KHz |
FEATURES
· Single ARM4 MCU design, most cost effitive;
· Meets 80+ Platinum efficiency standards and PF & iTHD requirements
· Compatible with AC&DC input;
· Active current sharing;
· Full protection,including input UVLO&OCP, output OVP&OCP and shortcircuit protection;
MAIN TOPOLOGY
| Function | Part Number | Brand |
| Input Fuse | 0487020MXEP | Littelfuse |
| Input Rectifier Bridge | GB]2508 | HY |
| PFC Current Sensor | MCA1101-20-5 | Aceinna |
| PFC MOSFET | SRC60R090BT | Sanrise |
| PFC Diode | G4HO6510AT | GlobalPower |
| PFC MOs Driver | IX4340N | IXYS |
| LLC Primary MOSFET | SRC60R140BTC-E | Sanrise |
| LLC Primary Mos Driver | NSI6602B-DSPNR | Novosense |
| LLC Secondary MOSFET | PDC3094X | Potems |
| LLC Secondary Mos Driver | IXDN609SIA | IXYS |
MEASUREMENT RESULTS AND WAVEFORMS
Efficiency curve @ 220Vac input
PF curve

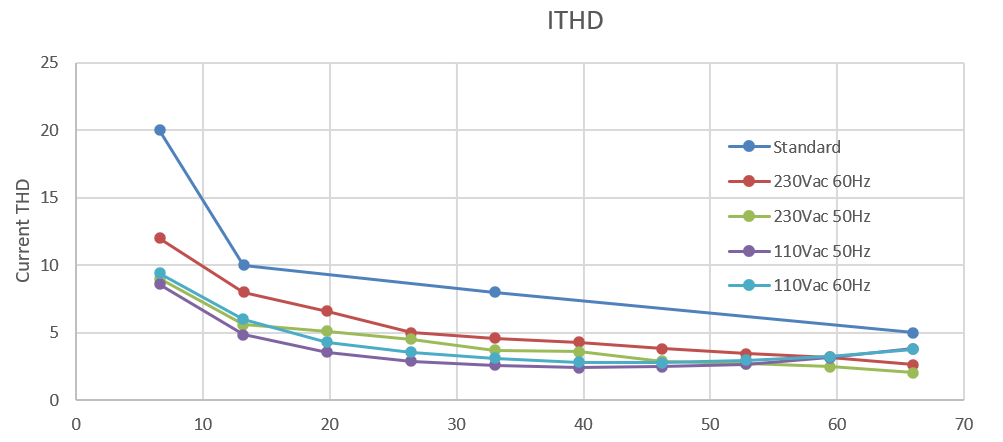

iTHD

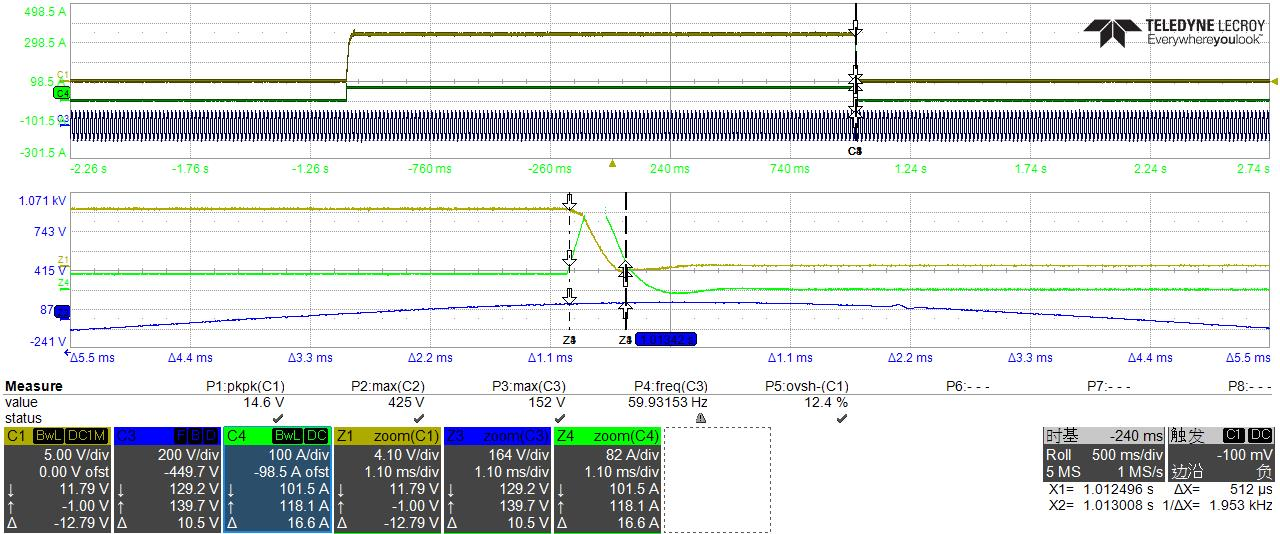

Full load start up
Full load start-up @163Vdc input
12Vsb stand-by and short circuit protection
Output voltage ripple 103mV @no load
Output voltage ripple 11 6mV @full load
12VDC main output OVP protection 13.5V
12Vdc main output short circuit protection
